Mappings from a source entity to a target entity can be imported into Designer in either CSV or JSON format.

See also:

Usage

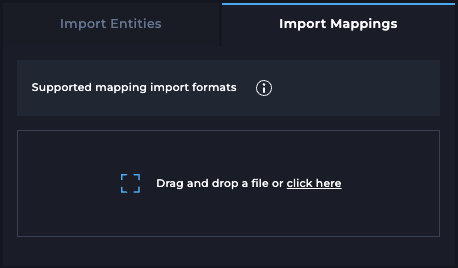

The Import Mappings menu is located on the Designer front page, next to the package list.

Prepare an import file using the required format to add new mappings, and then import it via the Import Mappings menu.

CSV format

Basic requirements

Header row is mandatory
No extra whitespace between columns
Allowed column delimiters:
- comma: ","
- semicolon: ";"
- pipe: "|"
Allowed encoding:
- UTF-8 (with or without BOM)
Allowed end of line characters
- Windows: CR LF
- Unix: LF

Columns

Columns	Description	Example	Required
source_entity_schema	Schema name of the source entity.	`staging`	Yes
source_entity_name	Name of the source entity or table.	`STAGE`	Yes
target_entity_schema	Schema name of the target entity.	`rdv`	Yes
target_entity_name	Name of the target entity or table.	`H_ORDER`	Yes
target_entity_load_name	Load job name for the target entity.	`load_h_order_from_stage`	Yes
entity_mapping_name	Name of the mapping between source and target.	`stage_to_h_order`	Yes
target_attribute_name	Attribute or column name in the target entity.	`dv_id`	Yes
source_system	Source system identifier.	`company_crm`	No
source_attribute_names	One or more source attribute names (comma-separated and quoted).	`"customer_id,order_id,product_id"`	No
target_system	Target system identifier.	`company_dv`	No
target_entity_load_type	Type of target entity load process (e.g., `TRANSFORM_PERSIST`).	`TRANSFORM_PERSIST`	No
target_entity_load_schedule_name	Name of the load schedule configuration.	`load_h_order_from_stage_schedule`	No
target_entity_load_description	Description of the load process.	`Load from STAGE to H_ORDER`	No
entity_mapping_position	Position or sequence of the mapping within the entity definition. Each mapping is identified by a unique `entity_mapping_name`. If multiple target attributes belong to the same mapping, all rows must have the same `entity_mapping_position` value (typically `1`). Only when defining multiple distinct mappings within the same import file should `entity_mapping_position` values differ (e.g., `1`, `2`, `3`).	`1`	No
entity_mapping_type	Classification of the mapping type. Allowed values `SOURCE` or `DEPENDENCY`. See more in entity mapping types.	`SOURCE`	No
transformation_type	Type of transformation applied (e.g., `CUSTOM`, `HASH`). Learn more about transformation types.	`CUSTOM`	No
transformation_formula	Transformation formula applied to the source column(s).	`"TO_VARCHAR(sdt_stage_create_time::TIMESTAMP, 'MM/DD/YYYY, HH24:MI HOURS')"`	No

Example CSV File

Example import file with required columns

source_entity_schema,source_entity_name,target_entity_schema,target_entity_name,target_entity_load_name,entity_mapping_name,target_attribute_name
staging,STAGE,rdv,H_ORDER,load_h_order_from_stage,stage_to_h_order,dv_id
staging,STAGE,rdv,H_ORDER,load_h_order_from_stage,stage_to_h_order,dv_load_time
staging,STAGE,rdv,H_ORDER,load_h_order_from_stage,stage_to_h_order,customer_name

Example import file with all columns

source_system,source_entity_schema,source_entity_name,source_attribute_names,target_system,target_entity_schema,target_entity_name,target_entity_load_name,target_entity_load_type,target_entity_load_schedule_name,target_entity_load_description,entity_mapping_name,entity_mapping_position,entity_mapping_type,transformation_type,transformation_formula,target_attribute_name
company_crm,staging,STAGE,stage_create_time,company_dv,rdv,S_ORDER,load_s_order_from_stage,TRANSFORM_PERSIST,load_s_order_from_stage_schedule,Load from STAGE to S_ORDER,stage_to_s_order,1,SOURCE,CUSTOM,"TO_VARCHAR(sdt_stage_create_time::TIMESTAMP, 'MM/DD/YYYY, HH24:MI HOURS')",formatted_time
company_crm,staging,STAGE,"customer_id,order_id,product_id",company_dv,rdv,S_ORDER,load_s_order_from_stage,TRANSFORM_PERSIST,load_s_order_from_stage_schedule,Load from STAGE to S_ORDER,stage_to_s_order,1,SOURCE,HASH,,dv_id

JSON format

In addition to CSV, mappings can also be imported using a JSON file.
The JSON format provides a hierarchical structure that supports multiple mappings, transformations, and attribute configurations in a single file.

Field	Description	Example / Notes
loadName	Load name for the target entity.	`"load_s_order_from_stage"`
loadType	Type of the load.	`"TRANSFORM_PERSIST"`
scheduleName	Name of the load schedule configuration.	`"1_HOUR"`
description	Description of the load.	`"Load from STAGE to S_ORDER"`
targetSourceSystem	Target system name.	`"company_dv"`
targetEntityName	Target entity name.	`"S_ORDER"`
targetEntityOwner	Schema of the target entity.	`"rdv"`
entityMappings	Object containing one or more entity mappings.	Each key is the mapping name (e.g., `"stage_to_s_order"`).
entityMappings..sourceSystem	Source system name.	`"company_crm"`
entityMappings..sourceEntityName	Name of the source entity.	`"STAGE"`
entityMappings..sourceEntityOwner	Schema of the source entity.	`"staging"`
entityMappings..mappingName	Name of the mapping.	`"stage_to_s_order"`
entityMappings..position	Position or sequence of the mapping within the entity definition. Each mapping is identified by a unique `entity_mapping_name`. If multiple target attributes belong to the same mapping, all rows must have the same `entity_mapping_position` value (typically `1`). Only when defining multiple distinct mappings within the same import file should `entity_mapping_position` values differ (e.g., `1`, `2`, `3`).	`1`
entityMappings..mappingType	Classification of the mapping type. Allowed values `SOURCE` or `DEPENDENCY`. See more in entity mapping types.	`"SOURCE"`
entityMappings..attributeMappings	Array containing attribute-level mappings.	See below.
attributeMappings.sourceAttributes	List of source attributes involved in the mapping.	`["customer_id", "order_id", "product_id"]`
attributeMappings.targetAttribute	Target attribute name.	`"dv_id"`
attributeMappings.transformationFormulaType	Type of transformation applied (e.g., `CUSTOM`, `HASH`). Learn more about transformation types.	`"CUSTOM"`
attributeMappings.transformationFormula	Transformation formula or expression.	`"TO_VARCHAR(sdt_stage_create_time::TIMESTAMP, 'MM/DD/YYYY, HH24:MI HOURS')"`

Example JSON File

JSON

{
  "loadName": "load_s_order_from_stage",
  "loadType": "TRANSFORM_PERSIST",
  "scheduleName": "1_HOUR",
  "description": "Load from STAGE to S_ORDER",
  "targetSourceSystem": "company_dv",
  "targetEntityName": "S_ORDER",
  "targetEntityOwner": "rdv",
  "entityMappings": {
    "stage_to_s_order": {
      "sourceSystem": "company_crm",
      "sourceEntityName": "STAGE",
      "sourceEntityOwner": "staging",
      "mappingName": "stage_to_s_order",
      "position": 1,
      "mappingType": "SOURCE",
      "attributeMappings": [
        {
          "sourceAttributes": ["sdt_stage_create_time"],
          "targetAttribute": "formatted_time",
          "transformationFormulaType": "CUSTOM",
          "transformationFormula": "TO_VARCHAR(sdt_stage_create_time::TIMESTAMP, 'MM/DD/YYYY, HH24:MI HOURS')"
        },
        {
          "sourceAttributes": ["customer_id", "order_id", "product_id"],
          "targetAttribute": "dv_id",
          "transformationFormulaType": "HASH",
          "transformationFormula": null
        }
      ]
    }
  }
}

Notes

The import will fail if there are:

Any mappings to attributes which do not exist in the target entity

Examples

Entity mapping queries

Example entity mapping queries can be found from Github.
