Tenant
When your Agile Data Engine tenant is set up, you can access ADE through your web browser.
Contact us if you do not have a tenant yet. In case you need help with your existing tenants, contact our support.
Tenant details
Each ADE tenant has the following characteristics:
Tenant identifier
Service name
Environment name
These details construct the URL for the ADE tenant:
https://external.<environment>.<service_name>.<tenant_identifier>.saas.agiledataengine.com
Where:
Attribute | Decription | Examples |
|---|---|---|
| Name of your environments. |
Runtime environment names are limited to 4 characters. |
| Service name for your account. |
|
| Identifier for your ADE tenant. |
|
Environment names and service name can be set up per customer requirements. Tenant identifier will be assigned by ADE support team.
Runtime configurations
ADE tenants can have multiple Runtime-environments, depending on the ADE Edition. Runtime-environments are used to separate workloads, for example, between development, testing and production.
Deployment settings for Runtimes are described in Deployment settings.
Example Runtime configurations
ADE Standard Edition
ADE environment with two Runtimes, development and production.
Runtime | Deployment settings |
|---|---|
|
|
|
|
ADE Enterprise Edition
ADE environment with three Runtimes: development, testing and production.
Runtime | Deployment settings |
|---|---|
|
|
|
|
|
|
Securing connection to ADE
User identity and access management with multi-factor authentication (MFA) is part of Agile Data Engine, and it handles secure authorization to the system. Alternatively, customer can choose to integrate their own Azure Active Directory to handle access management.
In addition, IP restrictions are recommended to ADE in order to prevent unwanted traffic to your ADE tenant. When opening ADE tenant, please provide outgoing IP addresses of your premises and services:
IP addresses of your office network and/or VPN service
IP addresses of services needed to communicate with ADE (for example, ADE Notifier’s public IP address)
Service verification
To verify ADE services, navigate to Agile Data Engine Designer with the link provided by ADE support, for example:https://external.design.datahub.s123456.saas.agiledataengine.com/modeler/
Log on with your user credentials
In clean ADE installation, packages with #SYSTEM -tag should be visible

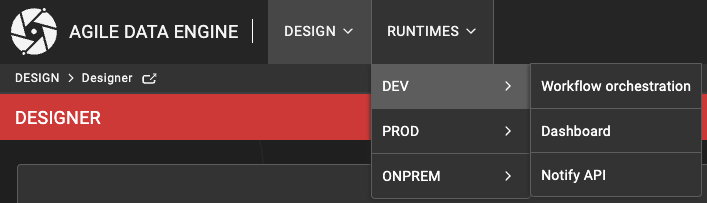

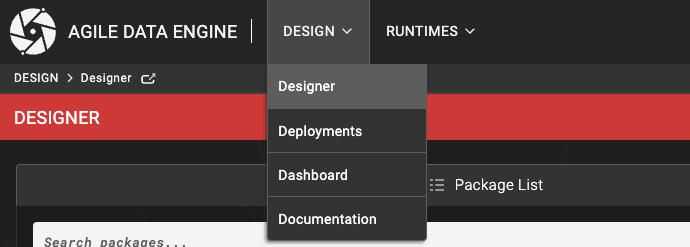

Use the navigation toolbar at the top of the user interface to access services in Agile Data Engine Design and Runtime environments.
Verify access to all services under DESIGN and RUNTIMES
